License ERDC’s Patented Protective Structures and Systems

ERDC is pioneering protective structures and systems, such as the Modular Protective Systems (MPS) suite of security measures, as well as novel shelters, barriers. Explore these technologies for more information on how they can benefit your business.

Scalloptic Protective Case for Fiber Optic Cables

• A non-metallic, water-resistant, insulated case protects the spliced ends of fiber optic cables from water, sediment, and frost
• Reusable design reseals cable connectors, eliminating costly onsite resplicing
• Ideal for telecom, civil infrastructure, and DFOS research uses

Underwater Blast Shield

• Contains explosions and captures debris
• Reduces shock waves and secures explosive remnants for safer cleanup
• Supports unexploded ordinance remediation, mine clearance, and blasting for dredging projects

Survivability and Assault Multi-Tool (SAM) System

• Combines four essential battlefield tools (ballistic shield, overhead cover, ladder, and footbridge) into a single modular system
• Reinforced ballistic panels provide immediate protection against small-arms fire and fragmentation
• Quick-locking pins and fold-out rungs allow soldiers to reconfigure the system in seconds
• Portable, compact, stackable design simplify transportation and storage

Blast, Ballistic, and Forced-Entry-Resistant Operable Window System with Glazing

• Readily installed in new or older buildings, including in walls of varying thicknesses with rough and non-plumb openings, without structural modifications or wall anchoring
• Designed to resist blasts, ballistic threats, and forced entry attempts when closed and locked
• Can be opened to provide ventilation, visibility, egress, and ability to return fire

UV-C Treatment for HAB Suppression (CyanoSTUN™)

• Contains UV-C within the reactor, preventing unintended impacts on the surrounding ecosystem
• Adjusts UV exposure dynamically based on water clarity and treatment goals
• Treats blooms without chemicals or permanent infrastructure

Automated Bead Width Control for 3D Concrete Construction

• Achieves ±¼ inch accuracy in bead width, enabling high-fidelity printing of complex geometries and structural features
• Dynamically adjusts gantry speed and pump settings to accommodate different material properties and design requirements
• Designed for expeditionary and remote use, ensures reliable performance in variable environments

Autonomous UV and Brush Apparatus for Well Fouling Prevention (Wellbot)

• Cleans faster and better without hazardous chemicals or heavy machinery
• Delivers cost-efficient, multi-year performance with remote control connectivity for optimal functionality
• Reduces personnel needs through rapid, non-technical deployment, easy mobilization, and minimal power demands

Universal Ruggedized Computer Enclosure

• Achieves a 10-35% space reduction compared to standard rackmount chassis
• Internal lattice walls operate as heat exchangers, and a built-in control unit monitors and adjusts temperature, humidity, vibration, and more as needed
• Designed to enable high-performance, upgradeable COTS computing in harsh, vehicle, and field environments

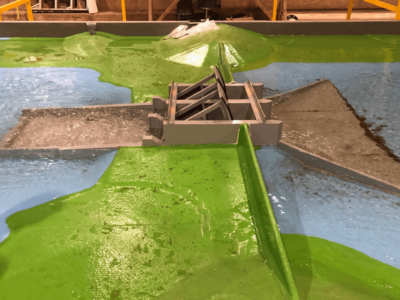

Modular Bathymetry

• Distinct CNC programming digitally creates expanded polystyrene foam (EPS) blocks that can be easily employed to create more detailed and accurate bathymetric models than traditional concrete
• EPS foam blocks can be easily and rapidly placed and removed in situ, allowing prototype refinement, use in limited space areas, and storage
• Using EPS reduces construction costs by 30-60% and allows up to 60% faster construction time compared with concrete modeling

Rapidly Deployable Over Decking Systems

• Over-bridge free spans (e.g. damaged piers or bridges)
• Side-load or end-load railcars anywhere along the line
• Deploy on uneven surfaces and compromised preexisting structures
• Assembles quickly without the need for power tools or heavy machinery
• Recoverable and reconfigure

Deployable Expedient Traffic Entry Regulator (DETER)

• Stops large vehicles upon contact
• Place or recover in less than 30 minutes
• Integrates into QuadCon for easy storage, transport and deployment
• No specialized equipment or tools required
• Blocks areas of any size with incrementally linkable 8'-width units

Autonomous Pressure Profile Recorder (APPR)

• Gathers data remotely, without entering blast radius
• Simple wireless configuration
• High-speed data acquisition (DAQ) solution

Hardened Alternative Trailer Systems (HATS) Technologies

• Complies with the U.S. Dept. of State Certification Standard for Forced Entry and Ballistic Resistance of Structural Systems (SDSTD-01.01 Rev. G)
• Inexpensive and easy to manufacture
• Fast on-site assembly
• Protects from intense ballistic, forced entry, blasts and adverse weather

Modular Guard Tower System (MGTS)

• Blast, ballistic, and forced-entry protection
• Pentagon shape, return fire gun ports, and operable windows
• Tilt up and bolt-together construction
• Steel frames and concrete-filled panels for durability and safety
• Fits in an ISO container (Quadcon) for rapid transport and deployment to the most remote locations

Blast, Ballistic, and Forced-Entry-Resistant Operable Windows and Doors

• Demonstrated fortification, installed and in use overseas
• Integrates into existing buildings
• Sliding windows and/or doors for ease of opening
• Wide tolerances to accommodate various opening sizes

Modular Protective Systems Expedient Guard Tower (MPS-GT)

• Protects against blasts, ballistics, indirect fire, and small-arms fire
• Demonstrated against real-world threats
• Currently deployed in 32 locations
• Assembly/disassembly by a team of 5 in one hour
• No special tools or equipment required
• Transports in Quadcon containers (weight < 8,000 lbs.)
